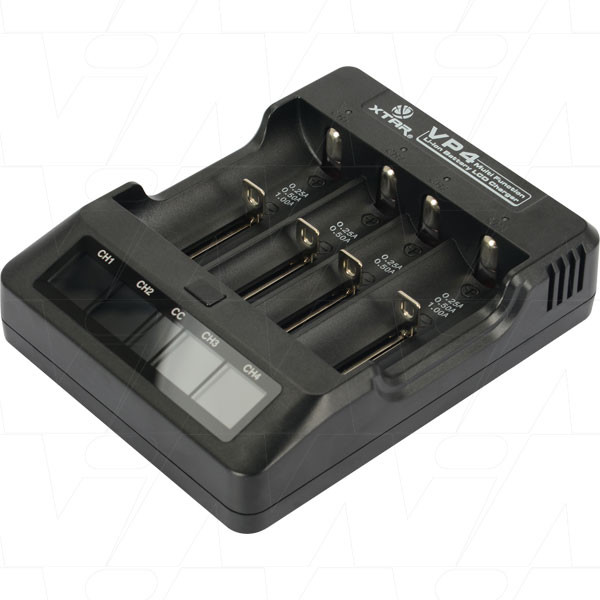

XTAR VP4 1-4 Cell Lithium Ion Battery Charger with Real Time LCD Display

$79.00 $69.00

Manufacturer: Xtar

Product Code: VP4 Full Set

Product Information

DescriptionXTAR VP4 1-4 Cell Lithium Ion Battery Charger with Real Time LCD Display
Width115mm
Height35mm
Length/Breadth/Depth147mm
Weight218g
Brand



Intelligent LiIon battery charger with four independent channels and real time LCD display.

  • Charge up to four 10440, 14500, 14650, 16340, 17670, 18350, 18500, 18650, 18700 or up to two 22650, 25500, 26650 3.6V/3.7V LiIon batteries.

    Charging Parameters:

    Input DC 12.0V 1.0A
    0.25A Constant Current Output 250mA x 4
    0.5A Constant Current Output 500mA x 4
    1.0A Constant Current Output 1000mA x 2
    Cut-off Voltage (Output Voltage)     4.2V











    Features:

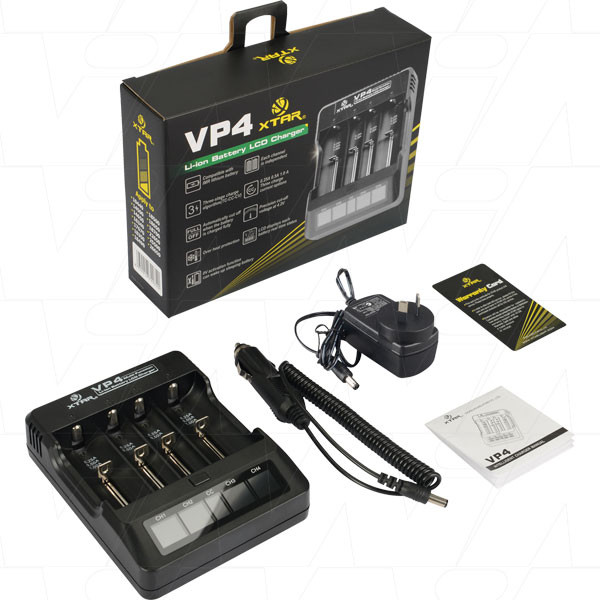

    • Input via included 100-240VAC to 12VDC Australian approved AC adaptor or 12VDC car adaptor.
    • Independent channels with real time high definition LCD display for each channel with 120° viewing angle for improved visibility.
    • Three stage charging: TC-CC-CV.
    • Three charge current options: 0.25A, 0.5A or 1.0A, selected manually or automatically.
    • Soft-start current and automatic shut off (@4.2V) to avoid damaging batteries.
    • 0V low battery activation.
    • Overheat protection as well as effective heat dissipation design and fire resistant PC shell construction.
    • Reverse polarity protection and short circuit protection.
    • LED status indicators.
    • 2 year warranty.

    Product Code: VP4 Full Set
