$23.00

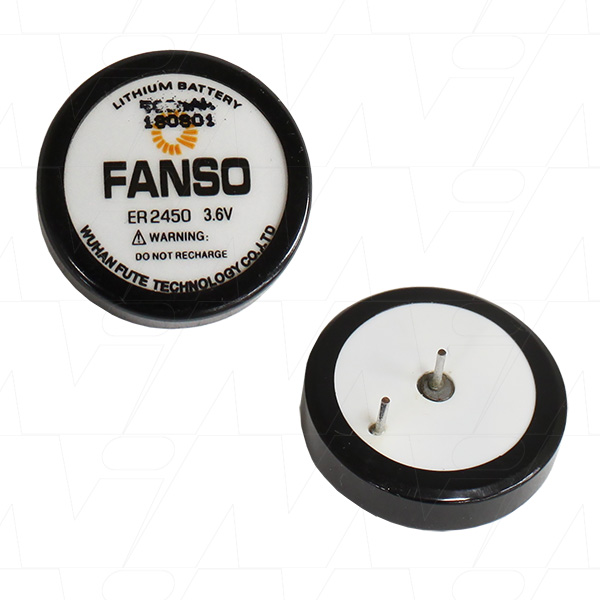

Description	Fanso ER2450 3.6V 500mAh Lithium Thionyl Chloride Battery - High Temperature Wafer Type with PCB Flat S+ S- (Replaces discontinued Tadiran TL-4986)
Chemistry	Lithium Thionyl Chloride
Voltage	3.6V
Nominal Capacity	500mAh
Watt Hour	1.8Wh
Maximum Continuous Discharge Current	8mA
Size	Wafer
Width	24.5mm
Height	5.5mm
Weight	9g
Brand

ER2450 primary lithium wafer cell with PCB Flat S+ S-

Wuhan Fanso high temperature wafer type range.

Features:

• Long shelf life: self discharge rate less than 1% at 25°C.
• High energy density (700Wh/kg).
• Long operating life.
• Stainless steel container and end caps.
• Wide temperature range: -55ºC ~ +125ºC.
• Hermetic glass-to-metal sealing.
• Non-flammable electrolyte.
• Compliant with IEC86-4 safety standard.
• UL Component Recognition MH46165.
• High and stable operating voltage.

Suitable for applications including:

• Utility metering
• Alarm and security devices
• Memory backup power
• Professional electronics
• Automotive electronics
• Real-time clock

Product Code: ER2450
