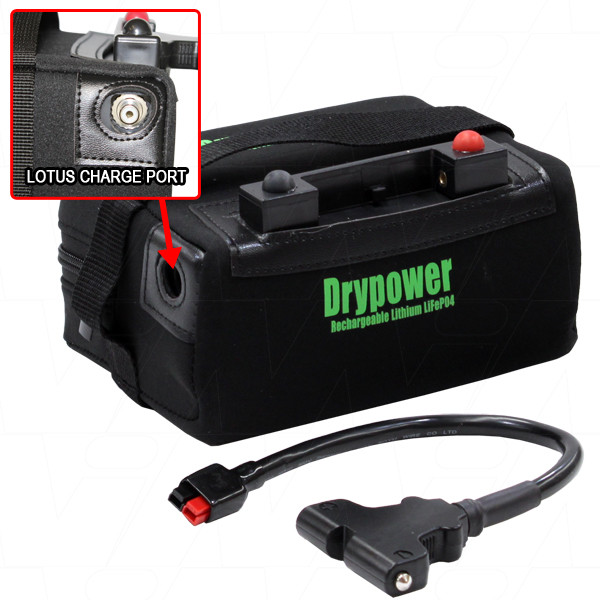

Golf Buggy / Caddy 12v 18Ah Lithium Battery & Charger Kit

$369.00 $299.00

Manufacturer: DRYPOWER

Product Code: 12LFP18TB

Product Information

Our website applies a standard freight charge on most orders of $15.00 AUD including GST per delivery, regardless of quantity ordered. Heavy items such as Sealed Lead Acid (SLA)  and large Lithium batteries are an exception to this ....extra freight charges may apply due to weight, transport method and delivery location. We will calculate this and notify you of any extra freight charge after your order is placed. This extra freight charge is at cost- meaning we seek to make no profit on freight. Please feel free to contact us for a quote on freight prior to ordering.

DescriptionDrypower 12.8V 18Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery & Charger Kit for use with Golf Buggies
ApplicationGolf Buggy, Golf Pull Carts
ChemistryLithium Iron Phosphate (LiFePO4)
Voltage12.8V
Nominal Capacity18Ah
Watt Hour230.4Wh
Maximum Continuous
Discharge Current
25000mA
TerminationT Bar to Anderson PP + Lotus Seat
Size4S5P
Width128mm
Height76mm
Length/Breadth/Depth168mm
Weight2500g
Brand





12V Lithium Iron Phosphate battery, carry bag and charger kit. Ideal for golf buggy use  26650-4S5P Construction

Specifications:

  • Cycle life: >2000 cycles (80% DoD) @ 25Deg Celcius
  • Max. continuous discharge current: 25A
  • Charge voltage: 14.2V - 14.6V (14.2V recommended)
  • Standard charge current: 3.6A
  • Max. cont. charge current: 5A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Nil
  • Parallel Connection: Nil

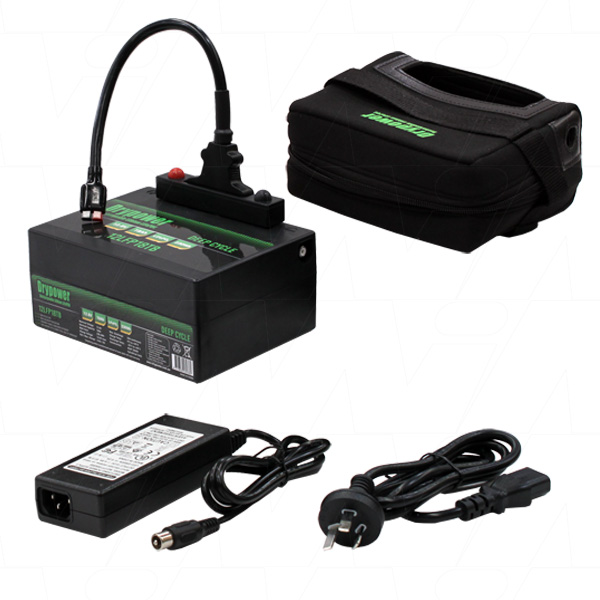

Kit comes with:

  • 12V 18Ah LiFePO4 Battery
  • Neoprene protective case
  • T-Bar to Anderson PP Output lead
  • Battery charger with Lotus Plug (which allows you to recharge the battery without disconnecting or removing the battery from the cart)


This battery is a direct replacement for the discontinued IFR12-160TB-Y Kit

  • Important Information:

    This Drypower Lithium Iron Phophate battery has been designed for use in Golf Buggies - No Series or Parallel connection allowed.

  • Why choose Drypower Lithium

     Key Features & Benefits

    High cycle life

    Provides up to 2000 cycles @ 80% DoD & Up to 5000 cycles @ 50% DoD, lowering the total cost of ownership compared to deep cycle lead acid batteries, AND after the 2000 cycles, Drypower Lithium batteries still provide 80% of the original rated capacity!

    Lightweight

    Drypower Lithium batteries provide more Wh/Kg while also being between 1/2 and 1/3 the weight of its SLA equivalent.

    Safe

    Inbuilt Protection Circuit Module protects against over-charging, over-discharging, over-current, external short circuit, incorrect charger use. Beware cheap imitations that lack a protection circuit or only use BMS cell balancing upon charging.

    Quickly recharge

    Capable of being charged at up to 1C max., you save time and increase productivity thanks to the superior charge/discharge efficiency. We recommend chargers with dedicated lithium battery profiles (see above for options)

    FAST discharge capable

    Unlike traditional lead acid batteries, Drypower Lithium rated capacities are independant of the discharge rates. The available capacity of a SLA battery is lower if discharged over 5 hours (compared to their 20hr rating). Drypower Lithium are rated at the 5 hour rate, meaning you could possibly even use a smaller capacity battery, saving you money and weight.

    Extreme heat tolerance

    Suitable for use in a wider range of applications where operating temperature is considered too high for SLA.

    Longer service life

    Low maintenance batteries with stable chemistry. Drypower Lithium batteries can last up to 8 times longer than AGM Lead Acid batteries meaning you change batteries less often, also reducing labour costs.

    Better storage

    Storage is not a problem thanks to extremely low self discharge (LSD) and no risk of sulphation.



    Shipping restrictions

    SHIPPING RESTRICTIONS APPLY

    This lithium based product is classified as Class 9 DG (UN3480)

    where it contains more than 20Wh/cell or 100Wh/pack (Lithium Ion)

    and therefore cannot be sent by airfreight.

  •

Product Code: 12LFP18TB
