$9,636.00

Self Contained Lithium Battery in Ruggedised Pelican Case

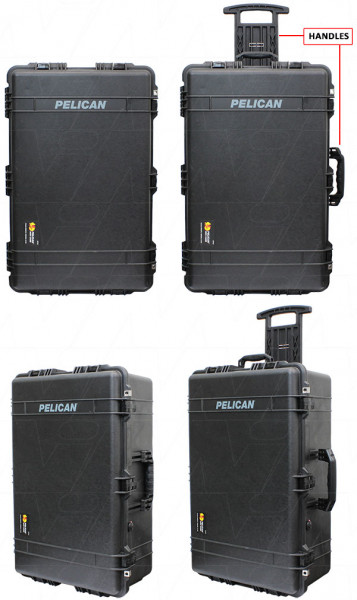

The LIBM-ESS252100 is a self-contained 25.2V Lithium Ion battery pack mounted in a high quality and environmentally resistant Pelican case:- IP66 rated with wheels for easy transportation and protection of a high power pack of this size.

This bespoke build provides a customised power output of up to 100Ah (2520Wh).

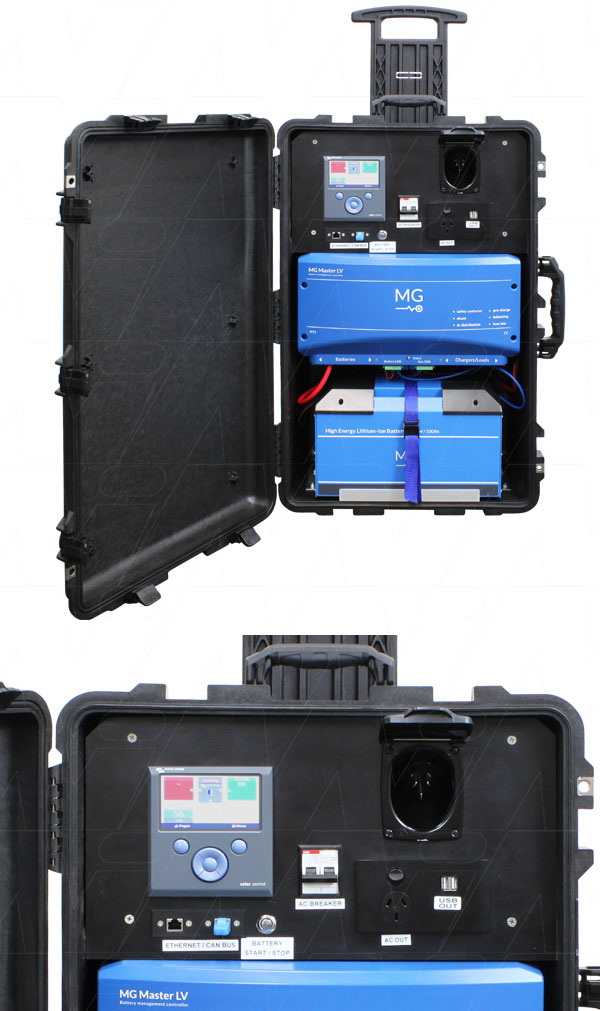

Internally, the LIBM-ESS252100 features an integrated MG Energy Lithium Ion battery and MG Energy battery management controller system, with a Victron Energy Multiplus 24/500-10 Charger/Inverter that you can monitor using the Victron Energy Colour Control GX display panel.

Additional features include:

• Switch board panel with input and output connectors
• MCB/RCD circuit breaker for AC output
• Ethernet connection port
• CAN connection port. NMEA 2000 compatible
• Remote control over VRM (online portal)
• Bluetooth connectivity to mointor over smartphone
• Configurable protection limits and alarms

Input:

• AC Input 187-265 VAC @ frequency 45-65Hz Power factor:1
• Minimum generator size 2kVa.

Outputs:

• Max AC power @25°C: 500W continuous.
• Max. Current: 2A AC
• USB Charger: Dual/10W each port.

Product Code: LIBM-ESS252100
