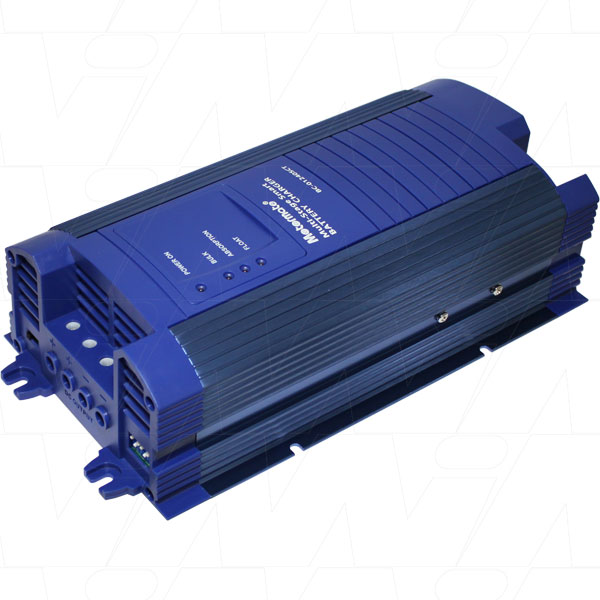

AC-DC 12V 40A fully automatic 4 stage battery charger adjustable for all types of lead acid batteries

$499.00 $399.00

Product Code: BC-01240SCT

Product Information

DescriptionAC-DC 12V 40A fully automatic 4 stage battery charger adjustable for all types of lead acid batteries
BrandMotormate
Width145mm
Height80mm
Length/Breadth/Depth280mm
Weight1700g
Comments

The Motormate BC series of chassis mountable compact AC-DC battery chargers use the latest switch mode technology providing fully automatic battery charger suitable for all lead acid battery technologies - SLA, AGM, Gel, Flooded Wet Cell and Calcium. The input and output are completely isolated. The charger can be used as a power supply to run electronic devices constantly.

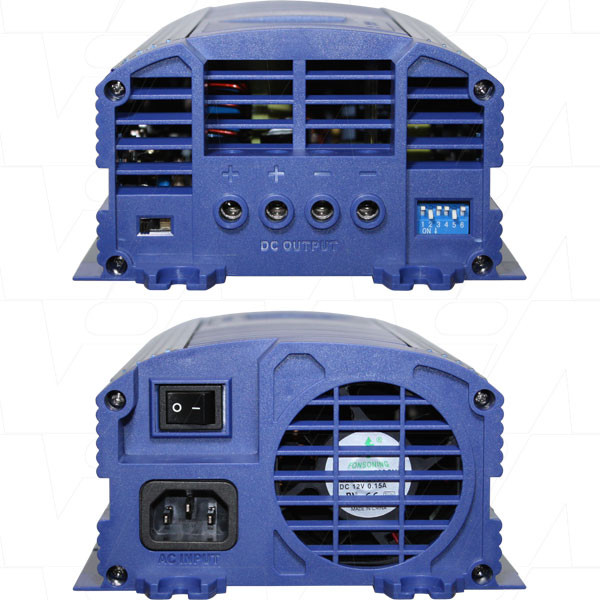

The BC-01240SCT is a fully automatic charger with overcharge protection with selectable boost/absorbtion charge voltages @ 40amps of 14.2V, 14.6V or 14.8V that drops to 13.2V, 13.5V or 13.8V in a reduced current float charge mode. Also features a thermal control cooling fan with autostart and a 4 colour LED charge mode display

Other models are available within the BC series with outputs suitable for 12VDC or 24VDC.

Featuring a tough anodized aluminium case with mounting cover and a wide range operating temperature, overload and short circuit protection with LED indication.

Click the datasheet link below for full information and specifications.

Data SheetBC-01240SCT.pdf
