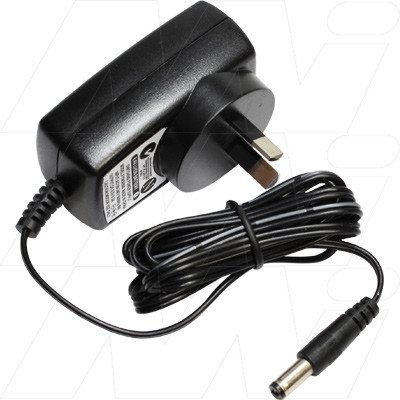

100-240VAC Wall Mount LiIon 2 Cell 8.4V Charger Output 500mA + 2.1mm DC Plug

$29.00

(Quantity discounts available)

Product Code: FY0850500

Product Information

Description 100-240VAC Wall Mount LiIon 2 Cell 8.4V Charger Output 500mA + 2.1mm DC Plug
Brand Fuyuan
Width 42.5mm
Height 34.5mm
Length/Breadth/Depth 67mm
Comments

100-240VAC input lithium ion battery charger for 2 cell 7.4V packs.

Specifications:

  • Input Voltage: 100-240VAC 50/60Hz
  • Output Voltage: 8.4VDC
  • Output Current: 500mA
  • Output Connection: 2.1mm I/D, 5.5mm O/D, centre positive, 1.8m 24AWG lead.
  • LED Indication:
    • Green – Power on and No Load
    • Red – Charging Battery
    • Green – Charge complete

NOTE: For indoor use only.

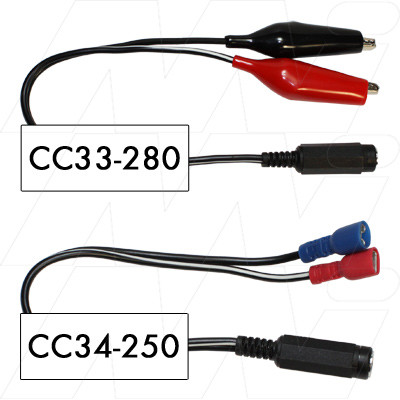

Extra Connector Adaptor:  For optional connector adaptors, see CC33-280 (female 2.1mm DC plug to alligator clips) or CC34-250 (female 2.1mm DC plug to female 6.35mm dual spade terminals). Connector adaptors sold separately.

Data SheetFY0850500.pdf

Can't read the data sheet? Try www.adobe.com



Product Code: FY0850500

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
5+$27.00
10+$25.00
